JS Series Forced Concrete Mixer 750 Liter with Twin Shaft Blades
JS750 concrete mixer Mixer equipment introduction
JS750 concrete mixer is a kind of twin horizontal shaft forced mixer.
This mixer has double superiority to do independent operation alone, or form a simple concrete batching plant together with PLD series aggregate batching machine. Also can be used as concrete batching plant's main host.
It's a kind of widely used heigh efficiency mixing machine.
Performance advantages:Reasonable structure design, novelted layout,easily for maintainence.
Can be used together with tipper car,dumper truck or mixer truck. And also can be tailored as per special requirement to meet with client's demands.
Mixing system
JS750 concrete mixer mixing system consists of motor, pulley, gearbox, gear, stirring device, mixing drum and other components. The main motor is connected to the secondary gear reduction box through a belt, and finally the two horizontally-connected stirring shafts are respectively rotated by the two pairs of open gears at the same speed.
Feeding system
When the JS750 concrete mixer is feeded, the mixture to be mixed is placed in the hopper, the feeding system is started, and the wire rope pulling hopper is climbed upward. When climbing to a certain height, the hopper enters the feeding rack, the door is automatically opened, and the material is discharged into the mixing drum through the funnel.
Discharging system
The discharging system is located at the bottom of the JS750 concrete mixer and is unloaded by a manual push rod. According to customer requirements, the mixer can be produced in the form of electric push rod discharge. The connection between the discharge door and the mixing drum is sealed with a sealing plate, and the position of the sealing plate can be adjusted to ensure the purpose of sealing.
Electrical System
The electrical control system needs to control the main drive motor of the JS750 concrete mixer, the motor of the water supply system, the feeding and unloading of the motor. All electrical control components are located in the distribution box. The electrical components in the distribution box are installed on an iron plate, which is safe and reliable, and convenient for operation and maintenance.
Technical Parameters
| project | JS750 |
| Discharge capacity | 750L |
| Feed capacity | 1200L |
| Theoretical productivity | ≤35m³/h |
| Maximum granule of aggregate (Lithotripsy/Pebble) | ≤40/60 |
| Speed of mixing blade | 31(R/min) |
| 2*7(number) |
| Power of agitator | 30KW |
| Improve motor power | 7.5KW |
| Pump motor power | 1.1KW |
| Shape size (Length, width and height) | 5025*3100 *5680 |
Product Tags:
|
|

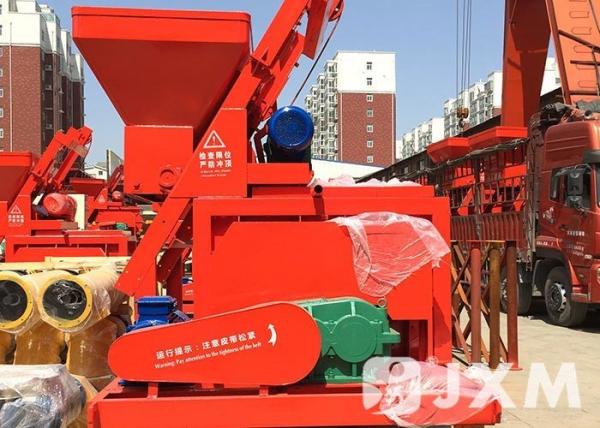

Construction Twin Shaft Concrete Mixer Images
|
